Tanatos Gen 3 (w/ tapered head tube)
Overview
The legendary street/dirt shredder, our flagship Tanatos frame now comes with a tapered head tube. While the rest may seem unchanged, thorough attention has been paid and adjustments made to almost every bit of the design, resulting in a super agile 26" MTB frame that accommodates up to some 2.25" wide knobby tires even when slammed at the 365 mm rear center position.
With triple butted tubing and post-weld heat treatment, every ounce of the 2.6 kg weight screams strength, ready for any abuse you can dish out on the street, dirt jumps, pump tracks, and everything else in between and beyond.

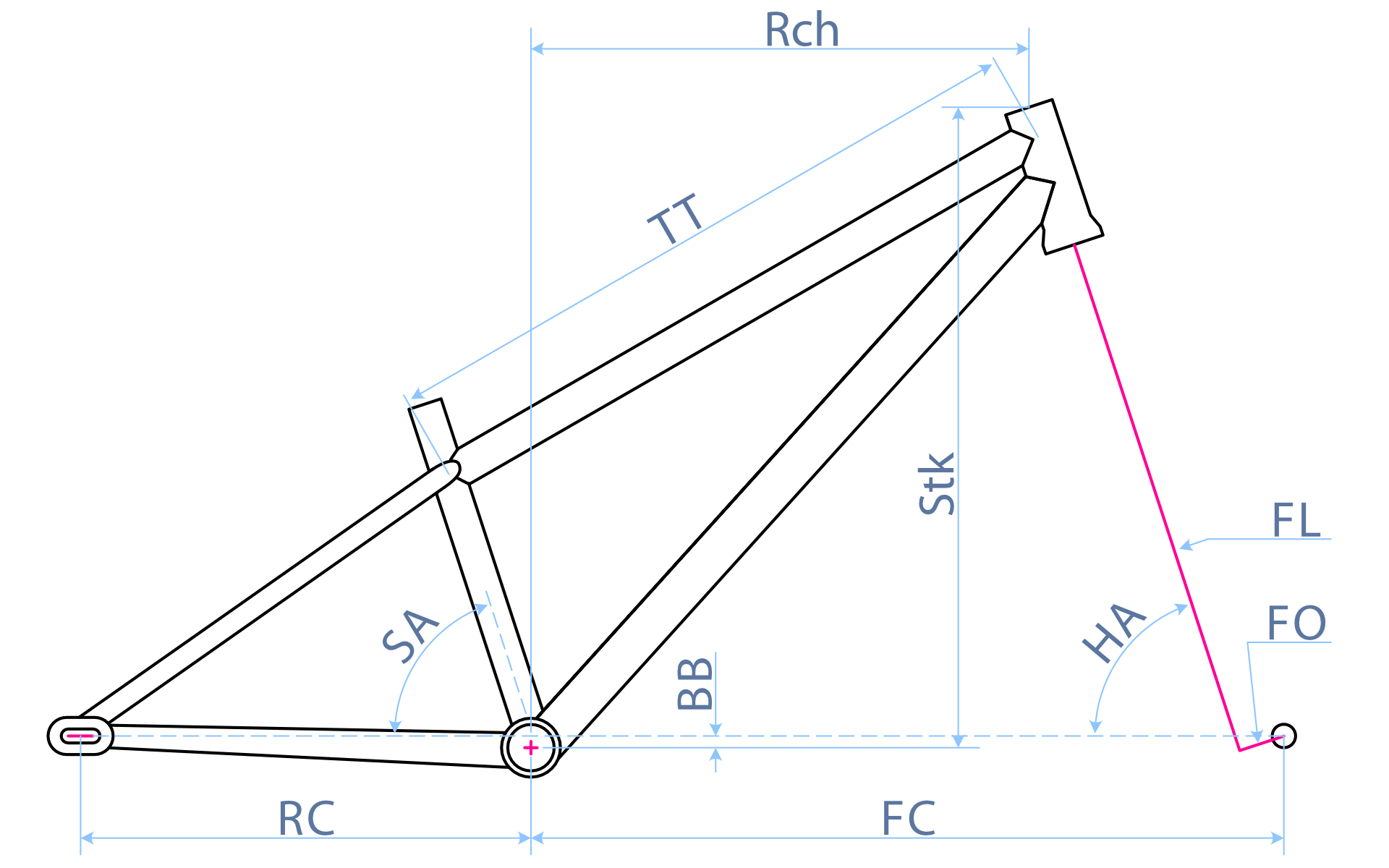

Geometry
Optimized for the ballpark figure of 100 mm travel suspension forks.
| Rch | Reach | 424 mm | |
|---|---|---|---|
| Stk | Stack | 544 mm | |
| TT | Top Tube | 573 mm | |
| HA | Head Angle | 72 deg | |
| SA | Seat Angle | 72 deg | |
| BB | BB Drop | 10 mm | |
| FC | Front Center | 639 mm | |
| RC | Rear Center | 375 +/-10 mm | |
| FL | Fork Length | 450 mm | (reference value) |
| FO | Fork Offset | 40 mm | (reference value) |
Interface
| Head | IS42 upper, IS52 lower | Campy-standard integrated tapered headset | |
|---|---|---|---|
| BB | Spanish Wide | Accommodates BMX cranksets with 6" spindles, or Shimano Hollowtech 2 Boost with Trek BB90 bearings | |
| Seat | 25.4 ID, 28.6 OD | Standard BMX size post and clamp | |
| Rear Hub | 135 mm OLD, 10 mm female shaft | Several choices on the market |
